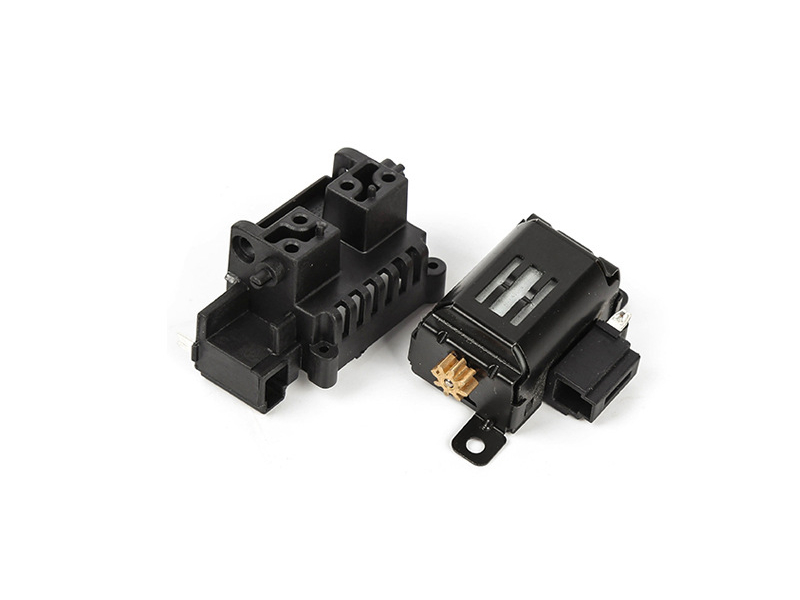

Insert Molding in Consumer Appliances: Combining Materials for Long-Lasting Performance

Manufacturing Process: How Insert Molding Works in Consumer Appliances

The insert molding process begins with preparing a mold designed to hold the inserted component—typically a metal or other material—while the plastic is injected around it. The metal or component is placed into the mold cavity before the plastic injection. The plastic is then heated until it is molten and injected into the mold under high pressure, enveloping the insert. Once the mold cools, the part is ejected, resulting in a component with multiple materials bonded together in a single process.

One of the critical aspects of the insert molding process is the precise control over temperature, pressure, and time during molding. These factors ensure that the inserted component adheres properly to the plastic, preventing defects such as weak bonding or warping. Advanced molding machines are employed to ensure that the components are inserted accurately, and the process is automated to ensure high efficiency, consistency, and repeatability, making it ideal for large-scale production of consumer appliance parts.

Typical Insert Molding Materials in Consumer Appliances

The selection of materials is crucial for insert molding, as the materials used must be compatible and capable of withstanding the stresses placed on appliance components. Here are some typical materials used in insert molding for consumer appliances:

1. Plastics

   • ABS (Acrylonitrile Butadiene Styrene): ABS is a versatile plastic used in appliance parts due to its high impact resistance and good tensile strength. It typically has a tensile strength of about 40-50 MPa and a high impact strength, making it ideal for parts that experience frequent handling or stress.

   • Polycarbonate (PC): Known for its transparency and high impact resistance, polycarbonate offers excellent heat resistance and is often used in appliance parts exposed to high temperatures, such as in the body of a dishwasher. Polycarbonate has a maximum hardness value of 120-130 on the Rockwell scale.

2. Metals and Composites

   • Steel Inserts: Steel is frequently used for inserts due to its high tensile strength, typically around 400-550 MPa, and its ability to withstand high temperatures. It is commonly used in appliances that require metal components for added structural support. Stainless Steel and Low Alloy Steel are also common choices.

   • Aluminum: Lightweight and corrosion-resistant, aluminum is another common material for inserts. It is ideal for parts exposed to moisture or air, such as those in refrigerators. Aluminum has a hardness of around 90-120 HB (Brinell Hardness), and anodized versions are frequently used for added durability in appliances like refrigerators. Check out the cast aluminum options for better performance in harsh conditions.

3. Elastomers

   • Silicone Rubber: Often used in sealing and gaskets, silicone rubber provides flexibility and resistance to high and low temperatures, making it ideal for appliances such as ovens and refrigerators. Depending on the formulation, silicone rubber has a hardness range of 30-80 Shore A.

Surface Treatment: Enhancing the Durability of Insert-Molded Parts

Surface treatment is critical in improving the performance and appearance of insert-molded parts, especially in consumer appliances where parts are subject to wear, heat, and environmental exposure. Here are common surface treatments used in insert molding:

1. Coatings

   • Paint Coatings: Applying paint or powder coating to insert-molded components provides a smooth, aesthetically pleasing finish while enhancing durability. This treatment can help parts resist scratches, corrosion, and wear, which is essential for appliances exposed to frequent handling. Learn more about painting processes for improved results.

2. Electroplating

   • Chrome Plating: Chrome plating is a popular surface treatment for appliance parts that require an attractive finish with corrosion resistance. It provides a shiny finish, and its high resistance to corrosion makes it suitable for components that need to maintain a polished look for extended periods. For a more comprehensive solution, explore electroplating techniques.

3. Anodizing

   • Anodized Aluminum: Anodizing creates a durable oxide layer on the surface of aluminum parts, increasing their resistance to corrosion and wear. This process is often used for metal parts in appliances like refrigerators and dishwashers, where parts are frequently exposed to moisture. For a deeper dive into the benefits, check out anodized aluminum parts.

4. Heat Treatment

   • Hardening and Tempering: For inserts made from metals like steel, heat treatment processes such as hardening and tempering are used to enhance material hardness and strength. Steel inserts, for example, can reach hardness levels of 55-65 HRC (Rockwell Hardness) after appropriate heat treatment, which is critical for parts that will experience high wear in consumer appliances. Learn more about heat treatment for further optimization.

Advantages of Insert Molding in Consumer Appliances

Insert molding offers several advantages when applied to consumer appliance manufacturing:

• Durability: The combination of materials enhances durability, making appliance parts resistant to wear, heat, and environmental factors.

• Cost Efficiency: By combining multiple materials in a single process, manufacturers reduce the need for additional assembly steps, which lowers production costs.

• Design Flexibility: Insert molding allows for more complex designs, as multiple materials can be combined into a single part to optimize functionality.

• Improved Performance: Using high-performance materials in critical areas can improve the overall performance of the appliance.

Considerations in Production

While insert molding provides numerous benefits, there are certain challenges that manufacturers must consider during production:

• Material Compatibility: Choosing materials that bond effectively without causing defects is crucial for ensuring the strength and longevity of the insert-molded parts.

• Design Complexity: Designing parts that effectively combine materials in the insert molding process requires expertise to ensure that the different materials do not interfere with each other during molding.

• Tooling Costs: The cost of specialized molds and tooling for insert molding can be higher than other manufacturing methods, but this is offset by the long-term benefits of reduced labor and assembly costs.

Applications of Insert Molding in Consumer Appliances

Insert molding is commonly used in several consumer appliances, including:

• Refrigerators: Metal inserts provide structural support for plastic components that must withstand heavy loads and frequent use.

• Dishwashers: The combination of heat-resistant plastics and metal inserts ensures durability in parts exposed to high temperatures and moisture.

• Washing Machines: Insert molding enables the creation of complex components, such as motor housings, that require both impact resistance and heat stability.

As consumer appliances continue to evolve, insert molding is poised to remain a critical manufacturing process, helping to create durable, efficient, and cost-effective parts that meet modern consumer needs.
