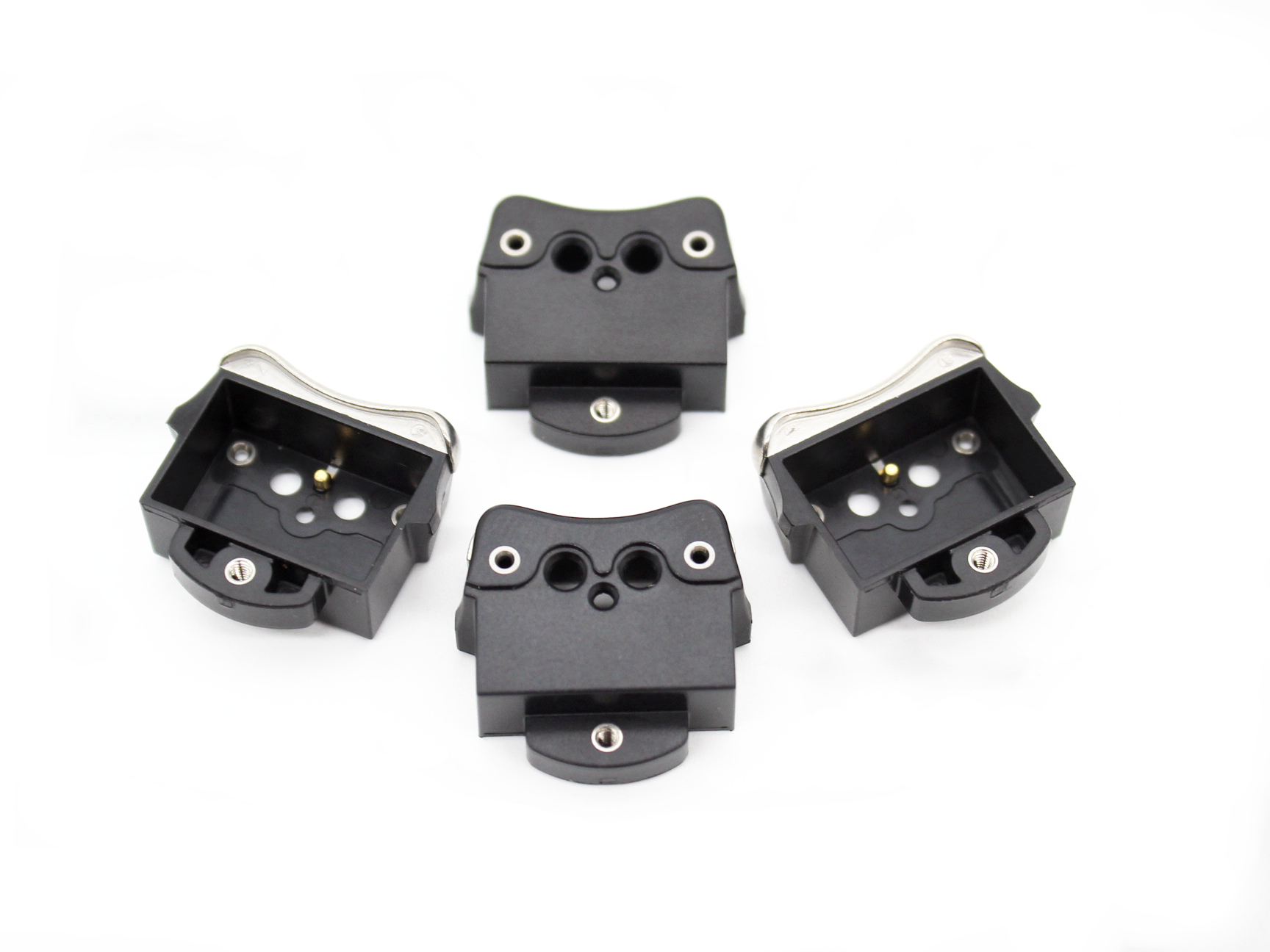

Insert molding is a widely used manufacturing process for electrical connectors that require high durability and reliability. It integrates metal or other inserts into a molded plastic component, creating a final product that combines the benefits of both materials. This method is essential for ensuring the performance of electrical connectors in critical applications, such as telecommunications and automotive industries. Check out our comprehensive guide for more details on the insert molding process.
Electrical connectors are key components in transmitting signals and power in various devices. They must meet stringent performance standards, and insert molding ensures high reliability even under extreme conditions like temperature variations and mechanical stress. By utilizing this process, manufacturers improve both the mechanical strength and electrical conductivity of connectors while also reducing production time and costs. Discover more about the advantages of insert molding.
Insert molding for electrical connectors is a multi-step process that begins with preparing the insert materials. Typically, these inserts are made from metals such as copper, brass, or stainless steel, which provide the necessary electrical conductivity and mechanical strength for the connector. The insert is placed into a mold cavity, and plastic is injected around it.
The plastic materials used in insert molding are carefully chosen based on the specific requirements of the electrical connector, such as thermal resistance, electrical insulation, and flexibility. Commonly used plastics include ABS (Acrylonitrile Butadiene Styrene), Polycarbonate (PC), and specialized thermoplastics. Once the plastic is injected into the mold, it solidifies around the metal insert, creating a component that combines the best attributes of both materials.
This process is highly automated and allows for precise control over the dimensions and performance of the final product. The result is a functional and durable connector that meets the needs of complex electrical systems.
The selection of materials is crucial in the insert molding process, especially when manufacturing electrical connectors. The materials must meet various requirements, such as conductivity, insulation, and resistance to wear and environmental conditions.
ABS (Acrylonitrile Butadiene Styrene): ABS is widely used in electrical connector molding because of its excellent impact resistance (impact strength of approximately 12–30 kJ/m² at 23°C), durability, and ease of molding. It also provides good electrical insulation, making it ideal for many electrical applications.
Polycarbonate (PC): Polycarbonate is known for its high strength (tensile strength of around 60–70 MPa), transparency, and heat resistance (heat deflection temperature of approximately 135°C). It is commonly used in applications where high mechanical properties and flame resistance are needed. This material also performs well in environments where the connector may be exposed to high temperatures or harsh chemicals.
Specialized Thermoplastics: For certain applications, manufacturers use specialized thermoplastics, such as PBT (Polybutylene Terephthalate) or LCP (Liquid Crystal Polymer), which offer superior thermal stability (heat deflection temperature up to 260°C), electrical properties (high dielectric strength), and resistance to chemicals. These materials are particularly useful in high-performance electrical connectors used in automotive or industrial applications.
In addition to the plastic components, metal inserts, typically made from copper, brass, or stainless steel, are chosen for their excellent electrical conductivity (copper has a conductivity of 58 MS/m) and corrosion resistance. The combination of these materials ensures that the electrical connector performs well electrically and withstands harsh environmental conditions.
Surface treatment is essential in enhancing insert-molded electrical connectors' performance and longevity. The surface of the connector, particularly the metal insert, must be treated to improve its resistance to corrosion, wear, and other environmental factors.
Electroplating: Electroplating is commonly used to improve metal inserts' surface quality and corrosion resistance. By applying a thin layer of metal (such as gold, silver, or nickel), electroplating helps prevent oxidation and enhances the overall durability of the connector. For instance, nickel plating typically provides a hardness of around 450–550 HV and can improve corrosion resistance by several orders of magnitude, especially in humid or corrosive environments.
Anodizing: For aluminum inserts, anodizing is a popular surface treatment. This process increases the thickness of the natural oxide layer on the surface of the metal, improving its corrosion resistance (up to 3000 hours of salt spray testing, depending on the anodized thickness) and wear properties. Anodizing also provides a decorative finish, making the connectors more aesthetically appealing.
Other Surface Treatments: In addition to electroplating and anodizing, connectors may undergo other surface treatments, such as passivation (increasing the corrosion resistance of stainless steel by improving the oxide layer) or phosphating (providing a coating that improves wear resistance and paint adhesion). These treatments ensure that electrical connectors perform reliably over time, even in demanding conditions.
Insert molding offers several significant advantages when used to manufacture electrical connectors:
Design Flexibility: The process allows for complex, multi-material parts to be produced in a single step. This flexibility enables the creation of connectors with integrated features such as electrical contacts, insulation, and mechanical supports.
Cost-Effectiveness: By combining the molding of plastic and metal inserts into a single process, insert molding reduces production time and minimizes material waste, ultimately lowering production costs.
Durability and Reliability: Electrical connectors produced through insert molding are highly durable and reliable. The combination of plastic and metal provides both mechanical strength and electrical performance, ensuring that the connectors perform well under stress and in challenging environments.
Precision and Consistency: The automated nature of insert molding ensures that connectors are manufactured to tight tolerances, providing consistent quality across large production runs.
While insert molding is an efficient and effective manufacturing process, several factors must be considered during production:
Insert Compatibility: The metal insert must be carefully chosen to ensure compatibility with the plastic material. The coefficient of thermal expansion (CTE) of the insert and plastic must be matched to prevent warping or stress during molding.
Material Selection: Choosing the right plastic material is crucial to achieving the desired performance characteristics for the electrical connector. Factors such as electrical insulation, heat resistance, and chemical stability must be considered.
Precision in Molding: Achieving precise tolerances is critical to ensuring the connector functions as intended. Molding pressures, temperatures, and cooling rates must be carefully controlled to avoid defects and achieve optimal material properties.
Insert molded electrical connectors are widely used across many industries, including:
Consumer Electronics: Electrical connectors in devices like smartphones, laptops, and televisions benefit from insert molding for enhanced durability and performance.
Automotive: Electrical connectors in vehicles, particularly in safety and entertainment systems, require high-performance insert molded components to ensure reliable operation in extreme conditions.
Telecommunications: In telecommunication equipment, connectors must be electrically conductive and resist environmental stress. Insert molding offers an ideal solution for these demanding applications.
The versatility of insert molding makes it an excellent choice for a wide range of electrical connector applications, offering reliability, precision, and performance.
