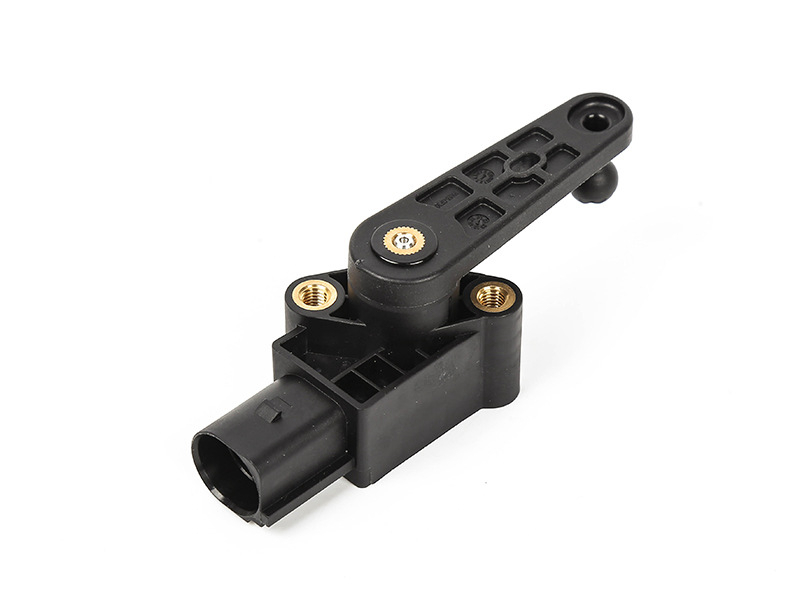

Insert Molded Components for Medical Devices: Enhancing Durability and Functionality
Introduction
Insert molded components are an essential part of the medical device industry, offering unparalleled durability and functionality. These parts are created through a highly precise process, making them suitable for medical devices that require superior performance, accuracy, and compliance with stringent industry standards. By incorporating insert molding technology, manufacturers can enhance the mechanical properties of medical parts, ensuring reliability in demanding environments.
The importance of inserting molded components in medical devices extends beyond durability. They provide critical advantages such as cost efficiency, reduced manufacturing complexity, and superior precision. As medical devices increasingly demand multi-material parts, insert molding enables manufacturers to integrate several functions into a single component, reducing the need for multiple parts and assembly. This allows for greater customization and versatility, particularly in producing complex medical devices.
Insert Molding Process for Medical Devices
Insert molding is a manufacturing technique that combines two processes: injection molding and insert placement. During insert molding, metal or plastic inserts are placed into a mold, filling the mold cavity with molten plastic or another thermoplastic material. Once the material cools and solidifies, the insert is securely encapsulated in the molded part. This highly automated process ensures precision and consistency, making it ideal for producing components in high volumes, such as those used in medical devices.
A key advantage of insert molding is integrating multiple materials into one part. For example, a thermoplastic material such as PEEK (Polyetheretherketone) or ABS (Acrylonitrile Butadiene Styrene) can be injected around metal or ceramic inserts, creating a strong, durable component that benefits from both the toughness of the plastic and the strength of the insert. Using specialized molds and precise temperature controls ensures that the inserts remain firmly in place, with the plastic surrounding them providing a secure bond without the need for additional fasteners or adhesives.
Typical Insert Molding Materials in Medical Devices
Material selection is a critical consideration in insert molding for medical devices. The choice of materials must meet both functional and regulatory requirements, including biocompatibility and resistance to wear, corrosion, and sterilization processes. Commonly used materials include thermoplastics, metals, and ceramics, each chosen based on the specific needs of the device.
PEEK (Polyetheretherketone): PEEK is a high-performance thermoplastic known for its excellent mechanical properties, including high tensile strength (up to 100 MPa), low friction coefficient, and resistance to temperatures up to 250°C. This makes it an ideal choice for medical device components that require long-term durability in harsh environments.
ABS (Acrylonitrile Butadiene Styrene): ABS is a versatile thermoplastic with high impact resistance, making it suitable for applications that demand toughness and strength. It has a tensile strength of around 40-50 MPa, which is critical in applications such as medical connectors or diagnostic tools.
Metal Inserts (e.g., Stainless Steel): Stainless steel is often used as an insert due to its excellent corrosion resistance and high tensile strength, making it ideal for medical devices exposed to sterilization or bodily fluids. For example, medical components with stainless steel inserts can have a tensile strength of 500 MPa and resist corrosion from harsh environments.
Ceramics: Materials such as alumina (Al2O3) are commonly used as inserts for their hardness and wear resistance. Alumina has a hardness of about 9 on the Mohs scale, which makes it extremely effective in parts that require high abrasion resistance, such as orthopedic devices or dental tools.
Surface Treatments for Medical Device Components
Surface treatments are crucial in enhancing the performance and longevity of insert molded components for medical devices. These treatments help to improve characteristics such as wear resistance, corrosion resistance, and biocompatibility.
Sterilization: Medical devices made from materials such as PEEK or ABS often require sterilization before use. Common sterilization methods include autoclaving, which subjects the components to steam at temperatures of up to 134°C. Materials such as PEEK are highly resistant to high temperatures and chemicals, making them ideal for repeated sterilization.
Anodizing: Anodizing is a commonly used surface treatment for medical components made from aluminum. Anodizing creates a thick oxide layer on the aluminum surface, increasing its resistance to corrosion and improving wear resistance. Anodized aluminum surfaces also provide a smooth, non-reactive finish that enhances biocompatibility. For example, an anodized layer typically reaches a thickness of 5-25 microns, offering excellent protection for aluminum components used in surgical tools or implants.
Coatings: Medical components may also undergo specialized coatings such as titanium nitride (TiN) for additional hardness and wear resistance. TiN coatings are commonly used on metal inserts to improve the component's ability to withstand abrasive conditions. TiN has a hardness of around 80-90 on the Rockwell scale, making it an ideal choice for high-stress medical devices.
Electropolishing: In some cases, metal components, especially those made from stainless steel, undergo electropolishing to remove surface imperfections and enhance corrosion resistance. This process results in a smooth, polished surface that is more resistant to microbial growth, which is crucial in medical applications where hygiene is a top priority.
Advantages of Insert Molding in Medical Devices
Insert molding offers several advantages in the production of medical device components. First, the process allows for precise control over material placement, which results in components with high dimensional accuracy and strength. By using both plastic and metal or ceramic inserts, manufacturers can achieve parts that combine metals' durability with the plastics' flexibility and moldability.
Additionally, insert molding reduces the need for additional assembly steps, as the inserts are securely enclosed within the plastic, reducing overall production time and cost. The versatility of the process also allows for the production of complex geometries that would be challenging or impossible to achieve using traditional manufacturing methods.
Considerations in Production
While insert molding offers significant advantages, there are key considerations that manufacturers must address during production. Ensuring the proper placement of inserts is essential for achieving the desired mechanical properties and structural integrity of the final component. Additionally, the materials selected for both the inserts and the molded plastic must be compatible to ensure proper bonding during the molding process.
Quality control is critical to ensuring that each component meets the stringent standards required for medical devices. Thorough testing and inspection, including dimensional checks, strength testing, and sterilization compatibility, must be conducted to ensure that each part meets regulatory standards.
Applications of Insert Molding in Medical Devices
Insert molded components are used in various medical device applications, from surgical instruments to diagnostic tools. Common examples include:
Surgical Instruments: Insert molded parts can provide precise and durable tips, handles, and joints for instruments such as forceps, scalpels, and scissors.
Connectors: Medical connectors made using insert molding combine the electrical conductivity of metal inserts with the insulating properties of plastic, making them ideal for devices that require electrical connections.
Diagnostic Tools: Medical diagnostic tools such as blood pressure cuffs and thermometers often benefit from inserting molded components, combining multiple materials to achieve functionality and durability.
