Enhancing Device Performance with Metal Injection Molding in Consumer Electronics

MIM Process in Consumer Electronics

Metal Injection Molding involves several critical stages, each requiring meticulous precision and control to ensure high-quality outcomes:

Precision Mixing of MIM Feedstock

The initial phase involves blending finely powdered metal with a polymer binder to create a homogeneous feedstock. The uniformity of this mixture significantly affects the subsequent molding phase, influencing both flow characteristics and component precision.

Injection Molding of Complex Electronic Components

The feedstock is injected into precise molds using conventional injection molding machines. This step allows the creation of complex geometries and detailed features unattainable by traditional machining methods such as CNC milling. Consistent injection pressure and temperature control are crucial for producing defect-free parts.

Debinding for Dimensional Accuracy

After molding, the binder is carefully removed through thermal or chemical processes. Debinding must be precisely controlled to prevent structural distortion or defects, ensuring dimensional stability before sintering.

Sintering for Optimal Mechanical Properties

The final manufacturing stage involves heating components below their melting points to fuse metal particles together. Proper sintering enhances mechanical strength, density, and integrity. Controlled atmosphere conditions during sintering prevent oxidation and contamination, crucial for reliability.

Advantages of MIM for Electronics

MIM offers substantial advantages in consumer electronics manufacturing:

• High Precision: Enables complex designs with precise tolerances.

• Complex Geometries: Facilitates the production of intricate shapes and internal features.

• Cost Efficiency: Reduces material waste suitable for high-volume production.

• Enhanced Mechanical Properties: Ensures strength, durability, and corrosion resistance.

• Minimal Waste: Environmentally friendly due to efficient material usage.

Essential MIM Materials for Electronics

Material selection is fundamental to maximizing the benefits of MIM, providing specific properties needed for consumer electronics:

Stainless Steel for Corrosion Resistance

• MIM 316L: Exceptional corrosion resistance, surpassing 1,000 hours in salt spray tests (ASTM B117), tensile strength of approximately 520 MPa, ideal for robust enclosures and connectors.

• 17-4 PH: High tensile strength (up to 1,380 MPa) and hardness (35-44 HRC after heat treatment), suitable for precision mechanical components and durable device parts.

Titanium Alloys for Lightweight Strength

• Ti-6Al-4V: Superior strength-to-weight ratio, tensile strength around 950 MPa, corrosion resistance, beneficial for lightweight, durable electronic components.

• Ti-10V-2Fe-3Al: High mechanical strength (around 1,200 MPa tensile strength), excellent toughness for stress-bearing electronics.

Superalloys for High-Temperature Applications

• Inconel 625: Outstanding resistance to oxidation and high-temperature conditions, tensile strength up to 830 MPa, optimal for thermal-sensitive electronics.

• Haynes 188: Combines excellent strength (approximately 1,000 MPa tensile strength) with exceptional oxidation resistance, crucial for components exposed to extreme heat.

Magnetic Alloys for Enhanced Functionality

• Fe-50Ni: High magnetic permeability and stability ideal for electromagnetic shielding, sensors, and magnetic components.

• Fe-3Si: Low core loss, high efficiency, extensively used in inductors and transformers.

Advanced Surface Treatments for MIM Electronic Components

Advanced surface treatments enhance the functionality, reliability, and aesthetics of MIM-produced electronic components:

• Electroplating: Enhances conductivity, corrosion resistance, and appearance. Commonly used finishes include gold, silver, and nickel plating, essential for connectors and shielding components.

• Electropolishing: Provides highly polished, smooth, and defect-free surfaces. Crucial for precision electronic contacts, sensors, and critical components where surface smoothness impacts performance.

• Black Oxide Coating: Offers excellent corrosion protection and aesthetic appeal, producing durable matte finishes ideal for visible electronic components subjected to rugged environments.

• Passivation: Chemically removes surface contaminants, forming a protective oxide layer that significantly improves corrosion resistance, essential for maintaining long-term reliability.

• Thermal Coatings: Specialized coatings designed to enhance thermal management capabilities in high-temperature electronic applications, improving component lifespan and operational stability.

Production Considerations for MIM Electronics

Successful application of MIM in electronics involves careful consideration of:

• Material and Surface Treatment Selection: Matching materials and treatments to specific functional and performance requirements.

• Cost Management: Optimizing the balance between quality, production efficiency, and cost-effectiveness.

• Quality Assurance: Implementing rigorous testing protocols ensures each component meets stringent industry and consumer standards.

Applications of MIM in Electronics

Metal Injection Molding finds numerous applications in consumer electronics, including:

• Connectors and Terminals: Require precise electrical and mechanical properties.

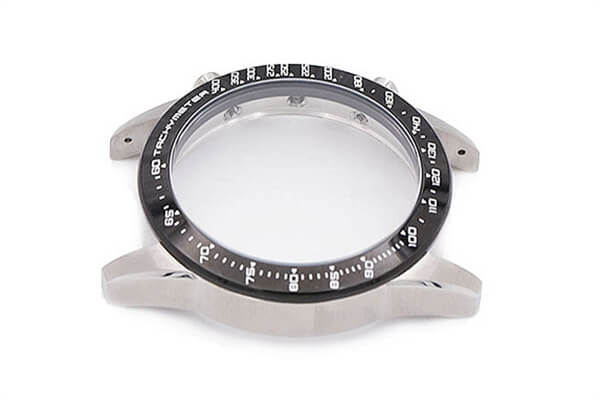

• Device Housings: Demanding strength, durability, and aesthetic appeal.

• Sensors and Actuators: High precision and reliability are critical.

• Electromagnetic Shielding: Utilizing magnetic alloys to protect against electromagnetic interference (EMI).

• Precision Mechanical Components: Internal parts requiring tight tolerances, strength, and resilience.
