Custom PEEK Injected Bushing In the Automotive Industry

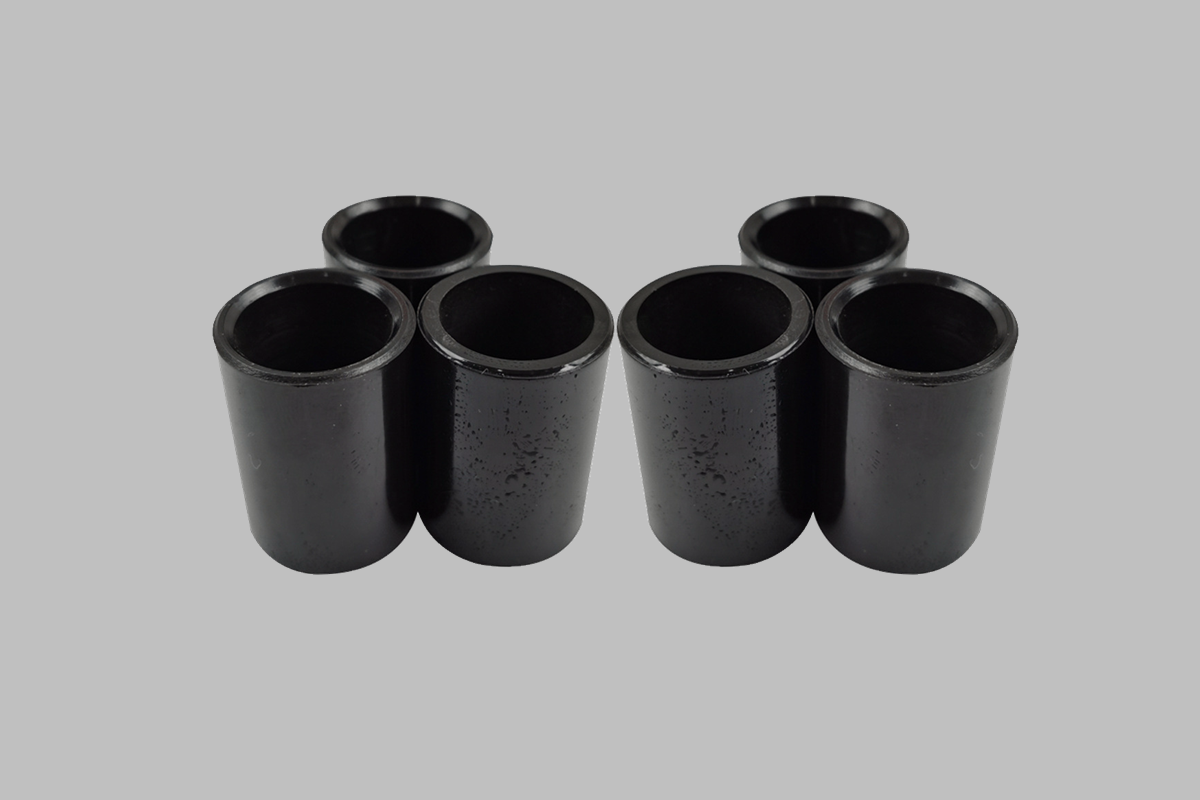

Custom PEEK Injected Automotive Bushings
Polyether ether ketone, commonly known as PEEK, is a high-performance engineering thermoplastic with a remarkable combination of strength, rigidity, and resistance to harsh chemicals and high temperatures. In the automotive industry, where durability and performance under extreme conditions are paramount, PEEK stands out as a material of choice for various critical components. One of the specialized applications of PEEK in this sector is manufacturing custom-injected bushings. These bushings are pivotal in numerous automotive systems, providing essential stability, shock resistance, and longevity to vehicle operations.
Properties of PEEK Material
PEEK (Polyether ether ketone) is renowned for its outstanding mechanical properties and environmental stability, making it a preferred choice for demanding applications such as those in the automotive industry. Here, we'll explore three fundamental properties of PEEK that make it particularly suitable for use in manufacturing custom-injected bushings:
High-Temperature Resistance
PEEK can perform exceptionally well in temperatures up to 250°C (482°F) and retains its mechanical properties in continuous service at these temperatures. This attribute is crucial in automotive environments, where components are regularly exposed to high thermal conditions near engines and exhaust systems. The ability of PEEK to maintain its integrity under such conditions helps extend the lifespan of bushings and reduce maintenance needs.
Mechanical Strength
PEEK exhibits a high strength-to-weight ratio, vital for applications requiring robust performance without adding significant weight. The material shows excellent wear and fatigue resistance, which is critical for bushings subjected to constant friction and repetitive loads. PEEK bushings can handle significant loads, offering a reliable performance with tight tolerances (typically within ±0.05 mm), which ensures that they fit perfectly and function consistently in automotive settings.
Chemical Resistance
In the harsh chemical environment of automotive systems, where exposure to oils, fuels, and hydraulic fluids is daily, PEEK's chemical resistance stands out. This material does not degrade quickly, maintaining its physical and mechanical properties despite prolonged exposure to aggressive substances. This resistance helps preserve the functionality and appearance of bushings over long periods, contributing to the vehicle's overall reliability and safety.
Advantages of Injection Molding for PEEK Bushings
Plastic injection molding is essential for producing custom PEEK bushings for the automotive industry. This method offers several advantages that enhance the final products' performance and economic value. Here, we delve into the precision, scalability, and cost-effectiveness of using injection molding for PEEK bushings:
Precision and Repeatability
Injection molding is renowned for its ability to produce parts with high precision and consistent quality. For PEEK bushings, achieving highly tight tolerances, typically around ±0.05 mm, is crucial for ensuring optimal fit and function within complex automotive assemblies. The process allows for intricate designs and complex geometries that are difficult to achieve with other manufacturing methods. This high level of precision ensures that each bushing performs reliably under the stresses of automotive operation.
Scalability
One of the standout features of injection molding is its scalability. Once the initial tooling is complete, the cost per part is relatively low, and production can be scaled up efficiently to meet high demand without a significant increase in cost. It is particularly advantageous for automotive manufacturers needing oversized bushings for extensive production runs. Injection molding allows for rapid production of oversized bushings, ensuring consistent supply and uniformity across all parts.
Cost-effectiveness
While the upfront costs for creating molds can be substantial, the long-term benefits of injection molding for producing PEEK bushings are clear. The process minimizes waste as the PEEK can be precisely injected into the mold without excess. Moreover, the reduced cycle times and automation potential lower the labor costs and enhance the overall throughput of production. For automotive applications where cost reduction without compromising quality is critical, injection molding presents a viable and economical solution.
Application of Custom PEEK Bushings in the Automotive Industry
Custom PEEK bushings find extensive applications in various automotive systems, enhancing performance and reliability. Their superior material properties make them ideal for several critical areas:
Suspension Systems
PEEK bushings are crucial in vehicles' suspension systems, providing resilience against shock and vibration. These bushings help smooth the ride by absorbing and damping vibrations and noise from the road. Due to their high mechanical strength and durability, PEEK bushings contribute to the longevity and stability of suspension components, reducing the need for frequent replacements and maintenance.
Engine Components
In engine environments, PEEK bushings are invaluable in high temperatures and continuous mechanical stress. They are used in parts such as bearings, seals, and gaskets. Their ability to withstand high temperatures and resist chemical degradation from engine oils and coolants ensures that these components operate efficiently over an extended period. This reliability is crucial for maintaining engine performance and reducing the likelihood of engine failures.
Electrical Systems
PEEK's excellent electrical insulation properties make it an excellent choice for bushings used in electrical systems, particularly in electric and hybrid vehicles. These bushings can isolate and protect sensitive electrical components from thermal and mechanical stresses, ensuring safety and functionality. The material's inherent flame retardance and low smoke emission also contribute to safer operation in case of electrical faults.

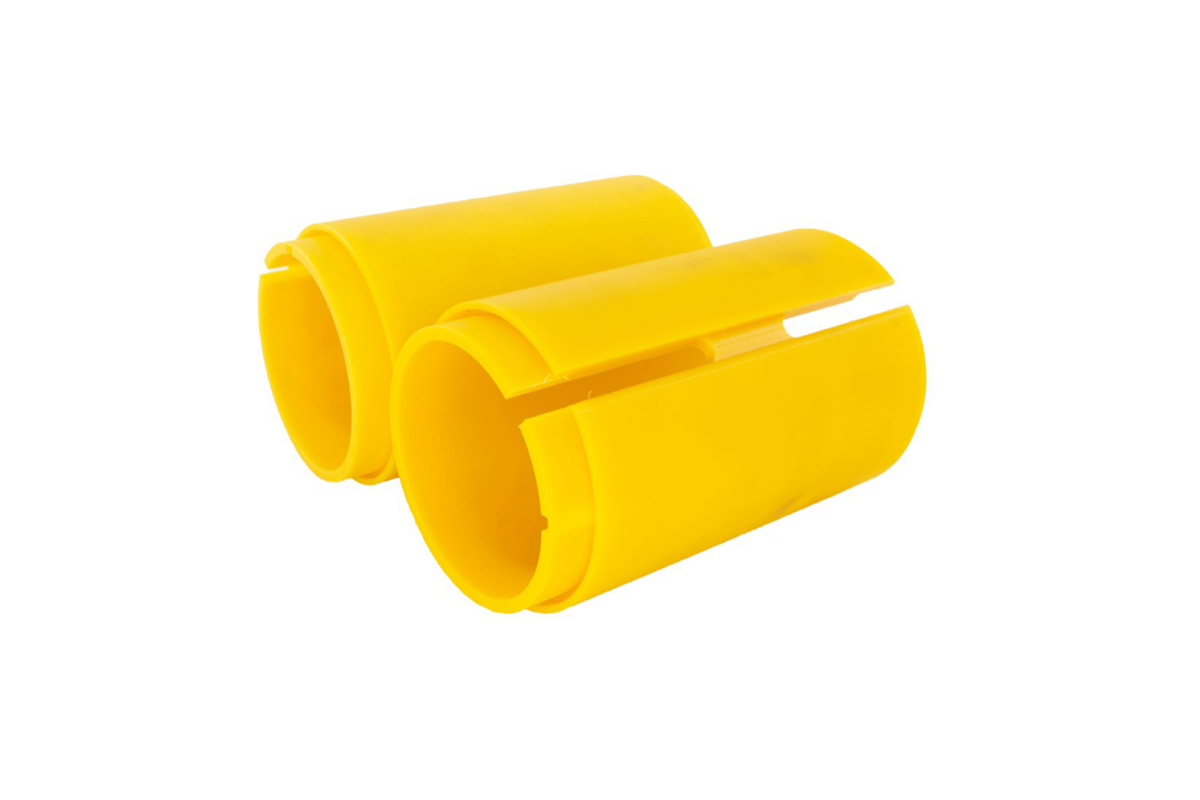

Case Study: Implementing Custom PEEK Bushings
To illustrate the practical advantages of using custom PEEK bushings in the automotive industry, let’s examine a real-world application. A leading automotive manufacturer faced issues with their traditional metal bushings, including frequent customer wear and noise complaints. The transition to custom PEEK bushings provided a robust solution.
Design Phase
The project began with an in-depth analysis of the existing metal bushings and their specific challenges. The engineering team designed a custom PEEK bushing that could fit into the existing assembly without requiring significant modifications. The design process involved precise calculations to ensure the new bushings withstand operational stresses and temperatures while maintaining dimensional stability.
Prototyping and Testing
Rapid prototyping, using 3D printing with PEEK material, allowed for quick production of testable prototypes. These prototypes underwent rigorous testing, including thermal cycling, load-bearing assessments, and long-term wear simulations. The results demonstrated significant improvements in durability and performance, with the PEEK bushings outperforming their metal counterparts in nearly every aspect.
Implementation and Outcomes
After successful prototyping and testing, the custom PEEK bushings were implemented across a significant production line. The benefits were immediately noticeable:
Reduced Wear and Tear: The PEEK bushings showed minimal wear compared to metal bushings, drastically reducing the frequency of replacements.
Noise Reduction: Customers reported a noticeable decrease in noise, attributed to a smoother and quieter ride.
Enhanced Performance: The bushings contributed to better handling and stability of vehicles, enhancing user satisfaction.
The successful implementation of PEEK bushings led to broader adoption within the manufacturer’s range of vehicles. This case study demonstrated the viability of PEEK bushings in high-stress applications. It highlighted their potential to improve automotive design and user experience significantly.
Challenges in Manufacturing Custom PEEK Bushings
While the advantages of using PEEK for custom bushings in the automotive industry are significant, there are also notable challenges associated with manufacturing these components. Understanding these challenges is crucial for effectively managing production processes and ensuring high-quality outcomes.
Material Handling and Processing
PEEK is a high-performance thermoplastic that requires careful handling during injection molding. The material must be processed at elevated temperatures (around 360°C to 400°C) to achieve optimal flow within the mold. This high processing temperature necessitates using specialized equipment resistant to thermal degradation. The cooling rate must also be precisely controlled to prevent residual stresses within the bushings, which could lead to warping or mechanical failure during use.
Design Complexities
Designing custom PEEK bushings involves intricate considerations to ensure that they meet specific performance standards. The properties of PEEK, such as its high strength and stiffness, require precise calculations to optimize the geometry of the bushings for load distribution and wear resistance. Engineers must also consider the interaction of PEEK with other materials in the assembly, particularly regarding thermal expansion and compatibility, to avoid issues such as binding or gapping under operational conditions.
Cost Considerations
Although PEEK offers long-term cost savings due to reduced maintenance and longer component life, the initial material and production costs are higher than those of more conventional materials like rubber or standard plastics. The cost of raw PEEK and the investment in specialized molding equipment can be significant. Automotive manufacturers must balance these initial costs against the expected performance improvements and lifecycle benefits to justify using custom PEEK bushings.
Meeting Automotive Standards
Automotive components are subject to stringent industry standards and regulations, which ensure safety, reliability, and performance. Custom PEEK bushings must comply with these standards, requiring thorough testing and certification processes. It includes tests for durability under various environmental conditions, chemical resistance, and compliance with safety standards for flammability and emissions.
Addressing these challenges requires a strategic approach involving investment in appropriate technology, careful design and engineering, and a thorough understanding of PEEK's properties and behaviors. Successfully overcoming these hurdles allows manufacturers to fully leverage the benefits of PEEK in automotive applications, leading to superior vehicle performance and customer satisfaction.
