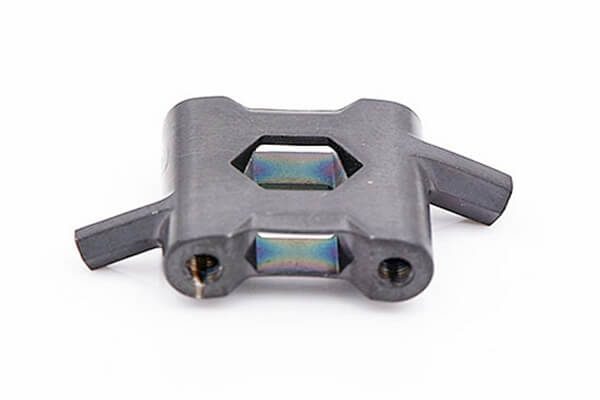

Applications of Metal Injection Molding in Automotive Component Manufacturing

Advantages of Metal Injection Molding for Automotive Components

Metal Injection Molding offers numerous advantages in automotive manufacturing, particularly due to its precision, reliability, and economic efficiency:

• Intricate, High-Precision Parts: MIM enables manufacturers to create complex shapes with precise tolerances, crucial for automotive applications where component precision significantly impacts overall vehicle performance.

• Enhanced Component Performance and Durability: Components produced by MIM exhibit superior strength, toughness, and reliability, which are vital for enduring the harsh conditions of automotive environments.

• Cost and Time Efficiency: The streamlined MIM process integrates multiple manufacturing stages into one, significantly reducing costs, production time, and material waste compared to traditional machining methods.

• Flexibility in Design and Material Choices: The versatility of MIM allows for the use of various metals, enabling manufacturers to optimize parts for specific performance requirements.

Manufacturing Process of Metal Injection Molding for Automotive Parts

The effectiveness of Metal Injection Molding in automotive applications is directly linked to its sophisticated manufacturing process:

• Feedstock Preparation: Blending fine metal powders with polymer binders ensures uniformity and suitability for molding.

• Injection Molding: The prepared feedstock is injected under high pressure into precision-engineered molds to produce components with exact geometries.

• Debinding: Following molding, polymer binders are carefully removed through thermal or chemical methods, leaving behind the metal part in its "green" state.

• Sintering: The green parts undergo sintering at high temperatures, solidifying into dense, strong, fully metallic components suitable for automotive use.

Each step significantly contributes to the dimensional accuracy, surface quality, and mechanical properties necessary for automotive components.

Materials Utilized in Automotive MIM

The material selection in automotive MIM is crucial, influencing component performance and longevity:

• Stainless Steels:

  • 316L: Preferred for corrosion resistance, strength, and ductility, ideal for exhaust system components and fuel injectors.

  • 17-4 PH: Offers high strength, corrosion resistance, and exceptional mechanical properties suitable for engine and transmission parts.

• Low Alloy Steels:

  • 4140 & 4340: Recognized for strength, toughness, and fatigue resistance, commonly used in gears, shafts, and drivetrain components.

• Tool Steels:

  • H13: Valued for heat resistance and toughness, ideal for braking systems and transmission components.

  • D2: Renowned for exceptional hardness and wear resistance, suitable for high-stress automotive parts.

• Tungsten Alloys: High-density materials ideal for vibration-damping components, wheel balancing weights, and mass-distribution-critical parts.

Material choices are driven by specific component functions, ensuring optimal automotive performance and durability.

Surface Treatments Enhancing Automotive MIM Components

Surface treatments extend the life and functionality of automotive MIM components:

• Heat Treatments (Carburizing, Hardening, Tempering): These processes enhance surface hardness and core toughness, critical for automotive components experiencing high friction and impact.

• Protective Coatings:

  • PVD (Physical Vapor Deposition): Protects against corrosion and wear, significantly extending component lifespan.

  • Electroplating: Enhances corrosion resistance and aesthetic appeal, widely used in automotive interiors and exteriors.

  • Zinc Coating (Galvanizing): Excellent corrosion resistance, ideal for underbody and exposed automotive components.

• Surface Finishing Techniques:

  • Electropolishing: Provides smooth, reflective surfaces, increasing corrosion resistance and aesthetic appeal.

  • Shot Blasting: Effectively cleans and hardens surfaces, improving adhesion for subsequent coatings or paint.

These treatments substantially contribute to automotive component performance, reliability, and lifespan.

Key Considerations in Automotive MIM Production

Automotive manufacturers must navigate several considerations to maximize MIM’s potential:

• Component Design for MIM: Designing specifically for MIM capabilities enhances manufacturability, cost-efficiency, and component functionality.

• Material and Treatment Compatibility: Selecting appropriate materials and compatible surface treatments ensures performance and longevity consistently meet automotive standards.

• Quality Control and Precision Manufacturing: Rigorous quality assurance processes and precision control are essential for consistent, high-quality outputs that meet strict automotive safety standards.

• Addressing Common Challenges: Challenges like shrinkage, dimensional inaccuracies, or distortions during sintering are managed through careful process control, precise mold design, and thorough testing.

Conclusion

Metal Injection Molding plays a critical role in automotive component manufacturing, enabling precise, durable, and cost-efficient components. With ongoing advancements, MIM continues to deliver innovations, greater efficiency and enhanced automotive performance.
