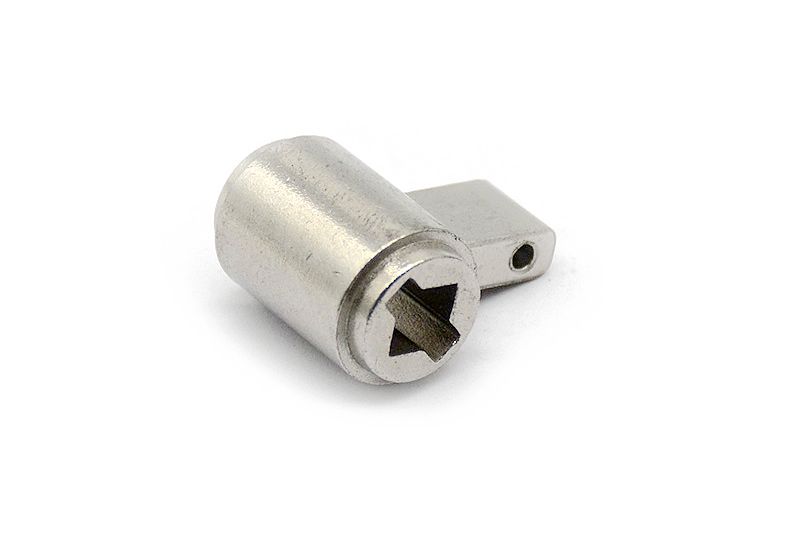

Advancements in Medical Devices Through Metal Injection Molding: A Look at Key Applications

MIM Manufacturing Process for Medical Devices

MIM achieves unparalleled precision and consistency essential for critical medical components through a carefully controlled, multi-step process:

Preparation of Metal Powder Feedstock

The MIM process starts by precisely blending finely powdered metal alloys with polymer binders to form a homogeneous feedstock. Consistent feedstock ensures reliable flow during injection molding, directly influencing the dimensional accuracy and mechanical properties of medical components.

Precision Injection Molding

The prepared feedstock is injected under high pressure into specialized molds, replicating intricate component geometries with exceptional accuracy. Injection molding supports complex, miniaturized designs necessary for advanced medical applications, including precision surgical instruments and orthopedic implants.

Debinding for Dimensional Accuracy

Following molding, polymer binders are removed through a controlled debinding process. Precise debinding ensures dimensional stability, preserving intricate details crucial for medical device functionality and reliability.

Sintering for Enhanced Mechanical Properties

The final manufacturing stage involves sintering, heating components below their melting point to consolidate particles into dense, robust structures. Proper sintering optimizes mechanical strength, biocompatibility, corrosion resistance, and durability, essential for long-term medical device performance.

Advantages of MIM in Medical Device Production

MIM technology offers substantial advantages specifically beneficial for medical manufacturing:

• Precision and Complex Geometry: Enables production of detailed, intricate designs impossible through conventional machining, ideal for miniaturized surgical tools and complex implants.

• Scalability and Cost Efficiency: Streamlines production processes, reducing waste and manufacturing costs, allowing economical mass production without sacrificing quality or precision.

• Superior Mechanical Strength and Durability: Delivers components with exceptional fatigue resistance and strength, critical in demanding medical applications like implants and surgical instruments.

• Enhanced Biocompatibility and Corrosion Resistance: Allows precise selection of materials and treatments optimized for biological compatibility, significantly enhancing device safety and patient outcomes.

Key Materials for Medical Device Components via MIM

Appropriate material selection directly impacts medical device safety, performance, and reliability:

Stainless Steel Alloys

• 17-4 PH Stainless Steel: Offers outstanding tensile strength (up to 1,380 MPa), hardness (35–44 HRC), and fatigue resistance. Ideal for surgical instruments, precision medical tools, and robust orthopedic components.

• MIM 316L Stainless Steel: Superior corrosion resistance, tensile strength (~520 MPa), and biocompatibility, commonly used in implants, surgical instruments, and devices exposed to biological fluids.

Titanium Alloys

• Ti-6Al-4V: Excellent biocompatibility, high strength-to-weight ratio, corrosion resistance, and tensile strength (~950 MPa). Widely used in orthopedic implants, dental prosthetics, surgical tools, and other applications demanding lightweight strength and biocompatibility.

Cobalt-Chrome Alloys

• CoCrMo (ASTM F75): Superior wear and corrosion resistance, hardness, and biocompatibility, essential for high-performance orthopedic implants, prosthetics, and surgical instruments subjected to intensive use.

Tungsten Alloys

• W-Ni-Fe: High density (up to 18.5 g/cm³), offering superior radiation shielding. Extensively used in medical imaging systems, radiation therapy equipment, and protective components where radiation absorption is critical.

Surface Treatments Enhancing Medical Device Components

Specialized surface treatments significantly enhance medical device performance, longevity, and patient safety:

Passivation

Passivation: Chemically removes contaminants, forming protective oxide layers significantly enhancing corrosion resistance and biocompatibility. Essential for surgical instruments, implants, and devices exposed to biological environments.

Electropolishing

Electropolishing: Produces extremely smooth surfaces, minimizing bacterial adhesion and significantly improving biocompatibility. Crucial for implants, surgical instruments, and precision medical components.

Physical Vapor Deposition (PVD) Coatings

PVD coatings: Enhances wear resistance, reduces friction, and improves biocompatibility. It is particularly beneficial for moving components in minimally invasive instruments, orthopedic implants, and surgical tools requiring sustained precision.

Anodizing

Anodizing: Enhances surface hardness, corrosion resistance, and biocompatibility, notably for titanium components. Supports bone integration in implants, enhancing durability and clinical outcomes.

Hydroxyapatite Coating

Applied widely to implants, this coating fosters bone integration, significantly improving the stability and long-term effectiveness of orthopedic and dental implants.

Considerations in Medical Device Production via MIM

Achieving optimal results using MIM requires addressing critical considerations:

• Biocompatibility and Regulatory Compliance: Ensuring adherence to stringent regulatory requirements (ISO 13485, FDA guidelines) for patient safety and efficacy.

• Strategic Material Selection: Matching materials precisely to specific medical applications' mechanical, biocompatibility, and performance requirements.

• Surface Treatment Optimization: Selecting appropriate treatments to enhance performance, corrosion resistance, and biological compatibility, improving device reliability and patient outcomes.

• Rigorous Quality Assurance: Implementing comprehensive quality control systems to ensure consistency, regulatory compliance, and optimal performance across all manufacturing batches.

Key Applications of MIM in Medical Devices

MIM significantly impacts diverse medical applications, including:

• Orthopedic and Dental Implants: High-strength alloys and specialized surface treatments enhance osseointegration, longevity, and biocompatibility.

• Surgical Instruments and Tools: Precision-crafted components offer exceptional strength, corrosion resistance, and hygiene-critical surface finishes.

• Prosthetic Components: Durable prosthetics benefit from improved mechanical properties, reduced friction, and enhanced biocompatibility.

• Minimally Invasive Surgical Devices: Intricate, high-precision components critical to micro-surgical and laparoscopic procedures, leveraging precise manufacturing and advanced surface treatments.

• Medical Imaging and Diagnostic Equipment: Radiation shielding, precision alignment components, and high-density materials optimize safety and operational accuracy.

Conclusion

Metal Injection Molding significantly advances medical device technology through precision manufacturing, specialized materials, and sophisticated surface treatments. MIM improves device reliability, patient safety, and clinical outcomes by enabling the creation of intricate, biocompatible, and robust components. As medical innovation continues, MIM remains essential for developing cutting-edge solutions that elevate healthcare standards.
