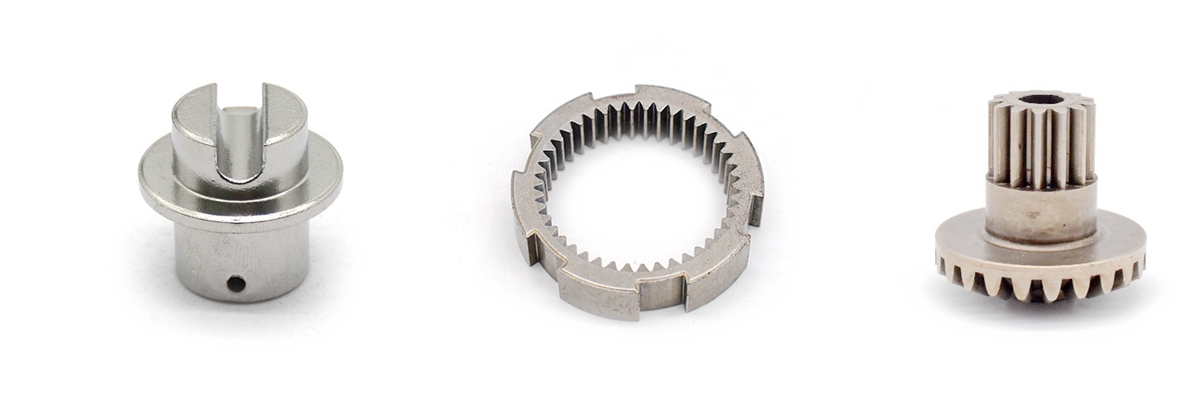

Powder Compression Molding (PCM) Parts Manufacturing Service

Powder Compression Molding (PCM) has cheaper mold costs than MIM and is the best manufacturing solution for custom parts with simpler shapes.

Send us your designs and specifications for a free quotation

All uploaded files are secure and confidential

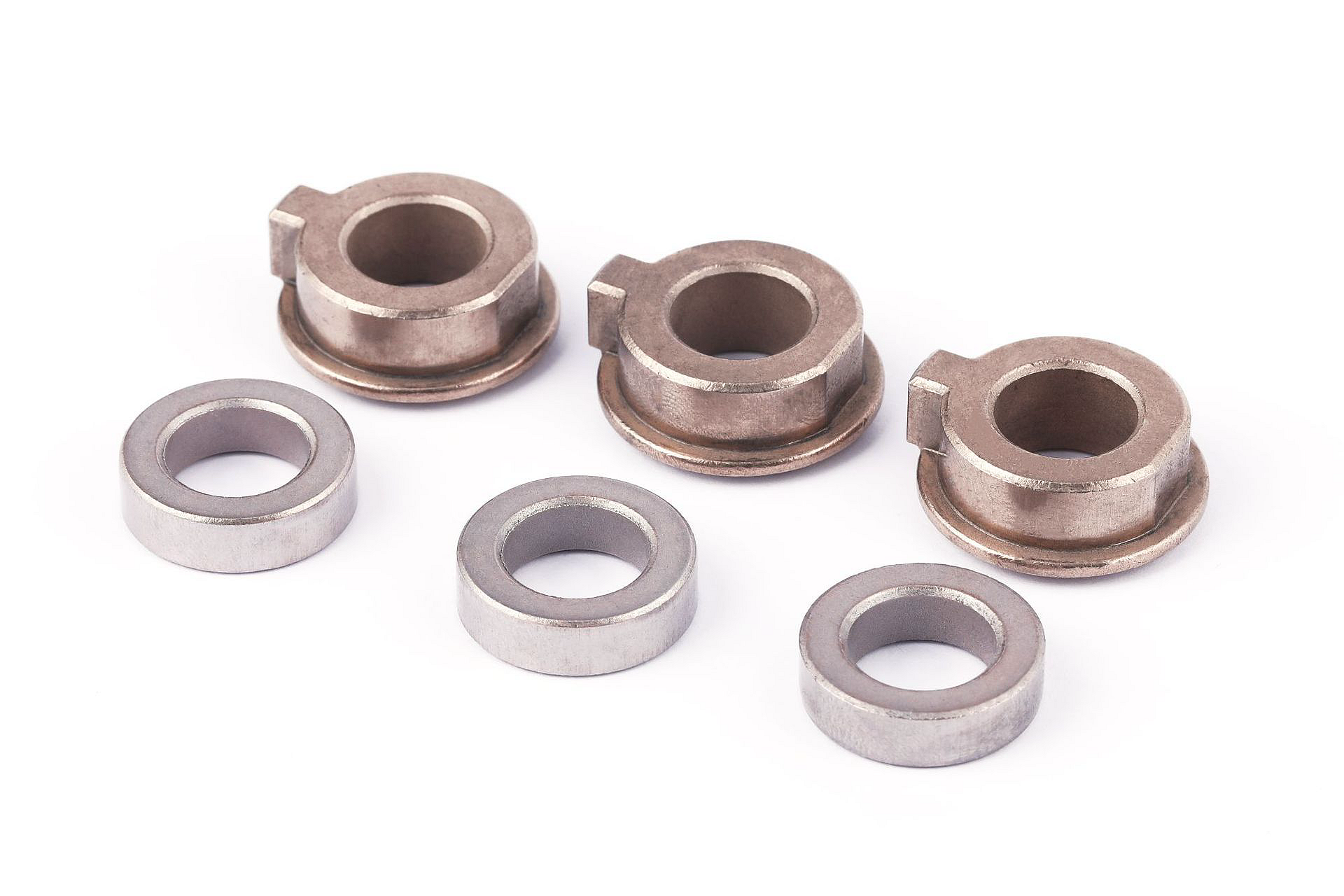

Advantages of Powder Compression Molding Service

Powder Compression Molding (PCM) offers key advantages including cost-effectiveness through less expensive tooling, versatility in handling diverse materials, capability for high-volume production, and environmental sustainability by reducing waste and allowing material recycling, making it ideal for efficient and eco-friendly manufacturing.

Advantages	Key Features
Cost Efficiency	Ceramic Injection Molding (CIM) excels in fabricating ceramic components with complex shapes and fine details that traditional ceramic shaping methods cannot replicate. This technique enables the integration of intricate designs, such as thin walls and complex geometrical features, into ceramic parts, essential in advanced applications.
Material Versatility	PCM is highly cost-effective, leveraging less expensive tooling and simpler production setups compared to other advanced molding processes. This affordability makes it ideal for projects with budget constraints while maintaining quality.
High Volume Production	Suited for high volume production, PCM facilitates the rapid manufacturing of large quantities of components. Its capability to maintain consistent quality over numerous cycles makes it indispensable for mass production scenarios, ensuring efficiency and speed.
Environmental Friendliness	PCM promotes environmental sustainability by significantly reducing material waste. The process allows for the recycling of excess materials, enhancing the overall eco-friendliness of manufacturing. This attribute makes PCM an attractive option for environmentally conscious businesses aiming to minimize their ecological footprint.

Learn More

Powder Compression Molded Parts Applications

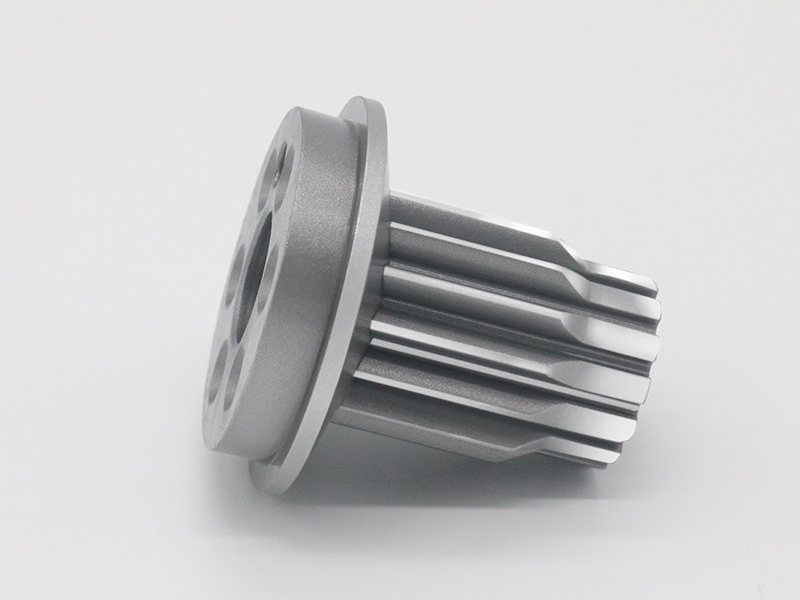

Our powder compression molding process delivers robust parts with high density and uniform properties. Discover versatile applications across various industries for reliable and cost-effective components.

Industry	Applications
Aerospace	Engine valve guides, Compressor vanes, High-strength structural components

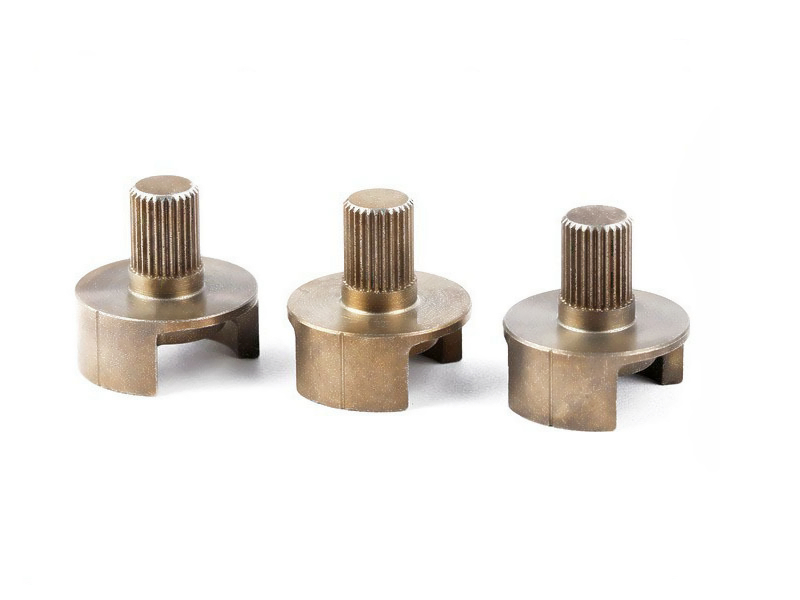

Automotive	Brake pads, Transmission gears, Clutch components

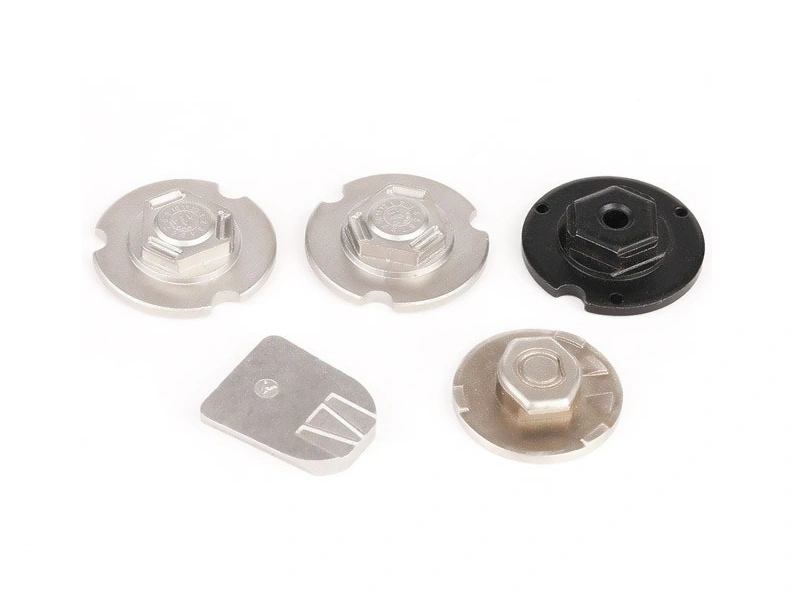

Consumer Electronics	Magnetic cores, Heat sinks, Electrical contact parts

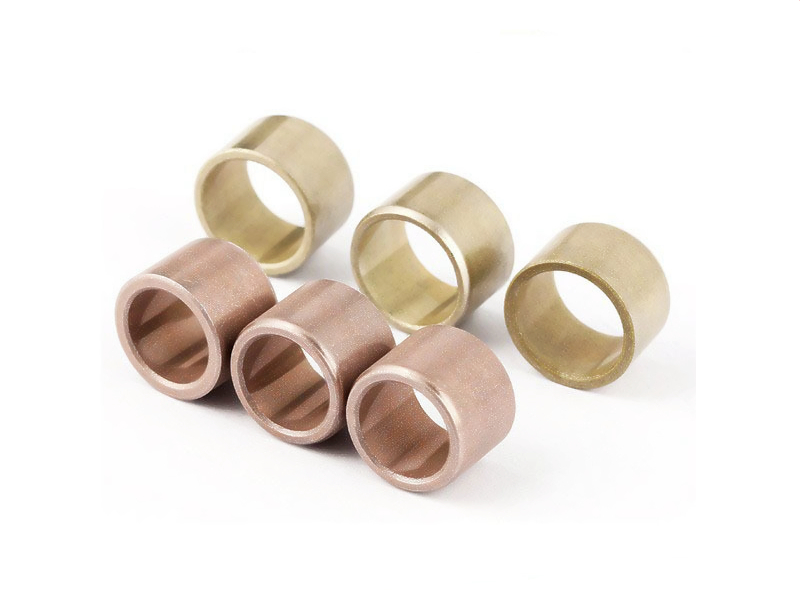

E-Mobility	Motor stator cores, Battery casing components, Power module housings

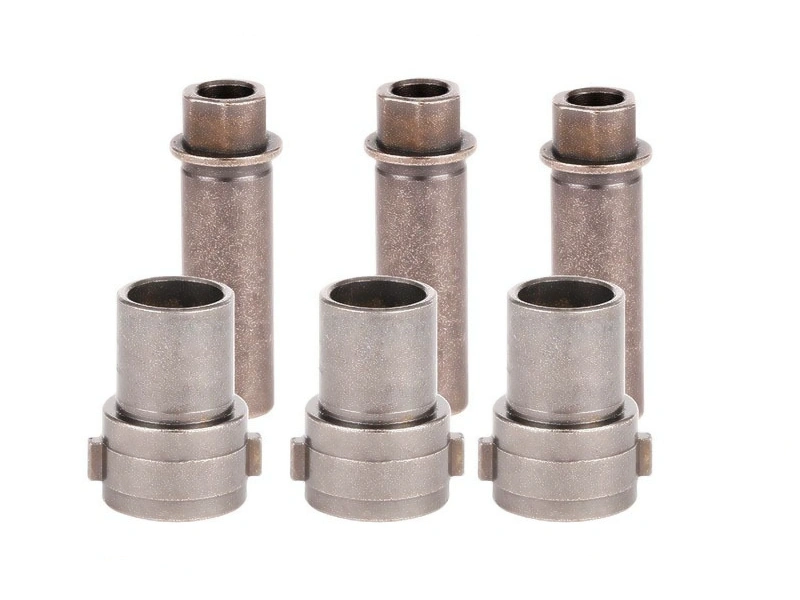

Energy	Solar cell connectors, Fuel cell plates, Electrical contactors

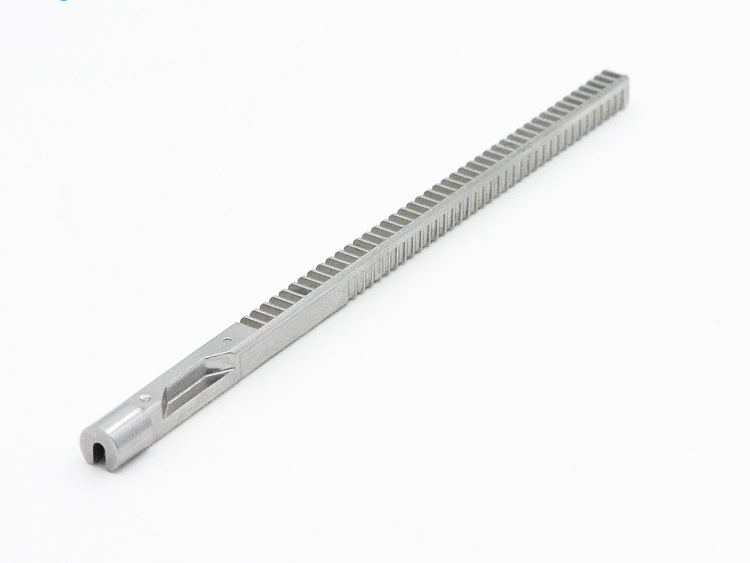

Medical Device	Implantable device casings, Surgical instrument handles, Precision filtration elements

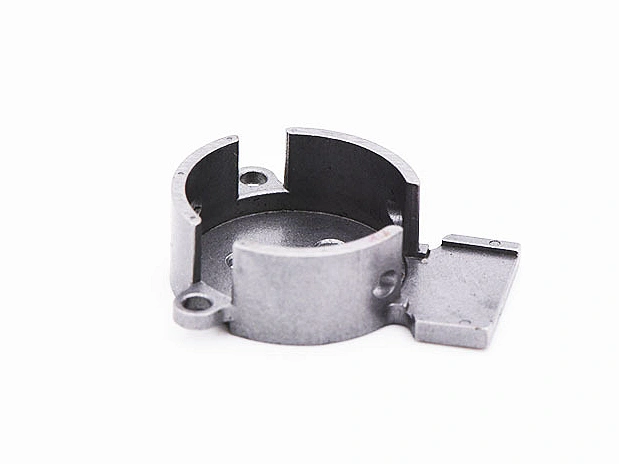

Telecommunication	RF shielding covers, Heat dissipation components, Signal transmission components
Lighting Solution	LED heat sink substrates, Lamp bases, Reflector housings

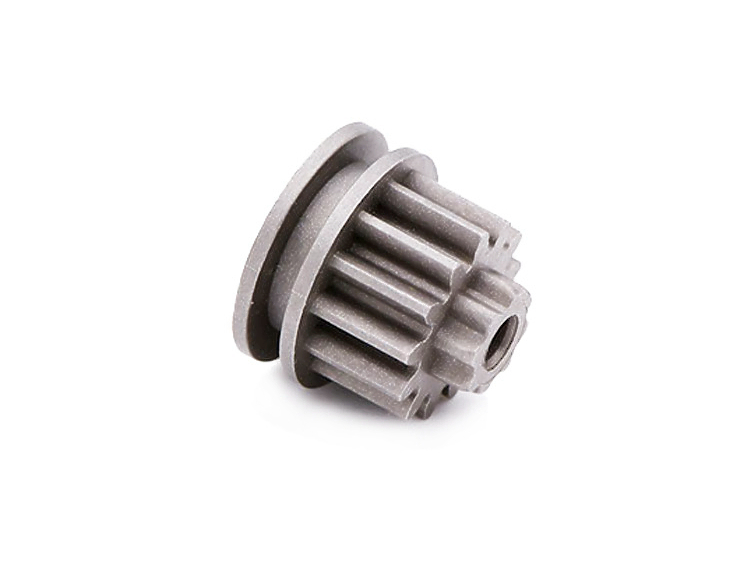

Power Tools	Gears, Bearing components, Motor housings

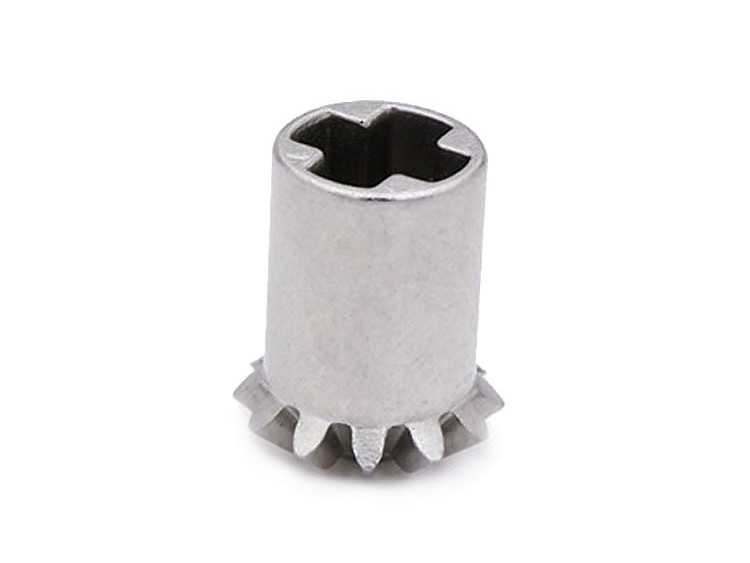

Locking System	Lock mechanism housings, Precision latch parts, Structural security inserts

Learn More

Powder Pressing Molding (PM) Materials

Metal Powder Pressing Molding at Neway

Metal powder compression molding is more suitable for larger, simpler geometric metal parts such as gears than metal injection molding—especially the manufacture of cemented carbide, high melting point alloys such as tungsten, and its alloy components.

Custom Parts Surface Finishing Available

Our Surface Treatment Service offers specialized finishes for custom parts, enhancing durability, aesthetics, and performance. We provide a range of processes, including Electroplating, Anodizing, Powder Coating, and Thermal Barrier Coatings, tailored to improve corrosion resistance, wear properties, and visual appeal of metal and plastic components across industries.

Design Elements	Standard/Specifications	Reasons
Max Size	300 mm x 300 mm x 300 mm	Ensures parts remain within the capacity of composite molding equipment and achieve uniform material distribution and curing.
Min Size	5 mm x 5 mm x 5 mm	Minimum size is dictated by mold fill requirements and the need to maintain proper fiber orientation or filler dispersion for strength.
Min Wall Thickness	0.5 mm	Thin walls facilitate quick curing and optimal bonding between composite layers without compromising mechanical strength.
Max Wall Thickness	12 mm	Excessive wall thickness can lead to uneven curing and residual stresses, which may adversely affect the part’s structural integrity.
Min Net Weight	2 grams	Ensures that even the smallest parts have sufficient material for proper structural performance and detailed features.
Cost-effective Max Weight	150 grams	Optimizes material usage for cost-effective production while maintaining the mechanical properties of medium-weight composite parts.
Max Net Weight	8 kg	Defines the upper limit to ensure process control and quality for larger composite parts during molding and curing.
Precision Range	+/- 0.5% to +/- 1%	Reflects the achievable dimensional accuracy for composite parts, balancing complexity with production variances.
Min Tolerance	±0.007 inch	Indicates the minimum tolerance level required to ensure proper part fit and function in composite applications.
Cost-effective MOQ	5,000 units	The minimum order quantity maximizes production efficiency and cost savings by fully utilizing the composite molding cycle.
Max Efficiency	90% material utilization	Reflects high material efficiency in composite molding, reducing waste while optimizing production cost and performance.
