Fluorosilicone
Fluorosilicone Injection Molding Manufacturing
Overview of Injection Molded Fluorosilicone
Injection-molded fluoro silicone is a high-performance elastomer made from silicone rubber and fluorinated hydrocarbons. It exhibits excellent resistance to extreme temperatures, chemicals, and fuels, making it ideal for aerospace and automotive applications.
Common grades of injection molded fluoro silicone used for injection molding parts include:
General-Purpose Fluorosilicone
High-Temperature Fluorosilicone
Fuel-Resistant Fluorosilicone
Oil-Resistant Fluorosilicone
Aerospace-Grade Fluorosilicone
Injection Molded Fluorosilicone Grades Comparison
Fluorosilicone is chosen for injection-molded parts when exceptional resistance to extreme temperatures, fuels, and chemicals is required. To select the suitable grade, consider factors like temperature range, exposure to fuels or oils, and specific chemical resistance requirements.
High-temperature fluorosilicone suits extreme heat, while fuel-resistant or oil-resistant grades are ideal for parts exposed to these substances. Aerospace-grade fluorosilicone meets stringent aerospace standards and is essential for critical aircraft components. The choice depends on the specific environmental and performance demands of the application.
Key Features And Applications
Fluorosilicone Grade | Key Properties | Common Applications |
|---|---|---|
General-Purpose Fluorosilicone | - Good general chemical resistance | Seals, gaskets, O-rings |
High-Temperature Fluorosilicone | - Exceptional heat resistance (up to 260°C) | Engine components, exhaust systems |
Fuel-Resistant Fluorosilicone | - Resistance to aviation fuels and oils | Aerospace seals, fuel systems |
Oil-Resistant Fluorosilicone | - Resistance to oils and hydrocarbon fuels | Automotive gaskets, fuel seals, O-rings |
Aerospace-Grade Fluorosilicone | - Meets stringent aerospace standards | Critical aircraft components, aerospace seals |
Physical And Mechanical Properties of Injection Molded Fluorosilicone
Property | Density (g/cm³) | Tensile Strength (MPa) | Tensile Elongation (%) | Flexural Modulus (MPa) | Flexural Strength (MPa) | Izod Impact Strength (J/m) | Heat Deflection Temp. (°C) | Shrinkage (%) | Hardness (HRB) |
|---|---|---|---|---|---|---|---|---|---|
General-Purpose Fluorosilicone | 1.45 | 8 | 200 | 350 | 6 | 25 | 200 | 2.0 | 55 |
High-Temperature Fluorosilicone | 1.50 | 10 | 180 | 400 | 8 | 30 | 260 | 2.5 | 60 |
Fuel-Resistant Fluorosilicone | 1.48 | 9 | 220 | 370 | 7 | 28 | 220 | 2.2 | 58 |
Oil-Resistant Fluorosilicone | 1.46 | 9 | 210 | 360 | 6.5 | 26 | 210 | 2.1 | 56 |
Aerospace-Grade Fluorosilicone | 1.49 | 10.5 | 190 | 420 | 9 | 32 | 250 | 2.3 | 62 |
Fluorosilicone Grades Injection Molding Properties

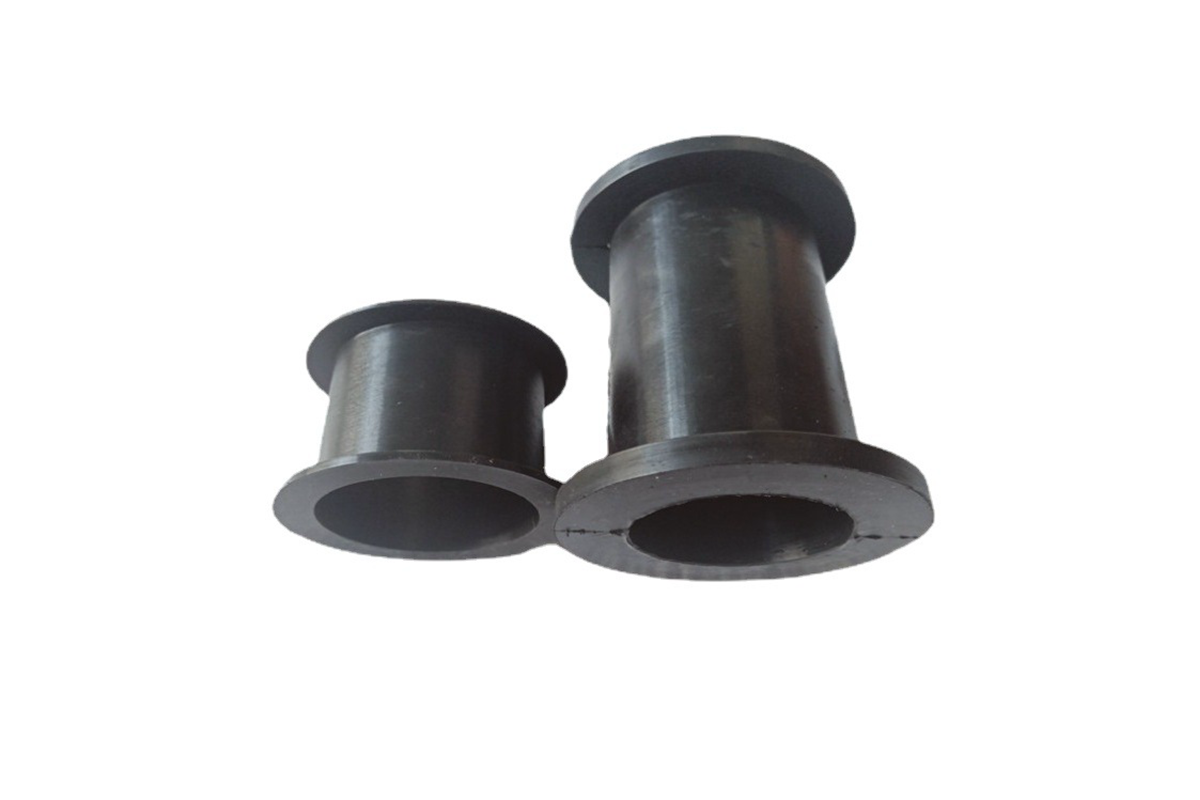

General-Purpose Fluorosilicone
Key Properties: It offers good general chemical resistance, moderate tensile strength, and flexibility.
Applications: General-purpose fluorosilicone is commonly used in sealing applications, such as O-rings and gaskets, where resistance to various chemicals and moderate performance are required.
Reasons for Use: It provides a cost-effective solution for general sealing needs and offers chemical resistance, making it suitable for various applications.

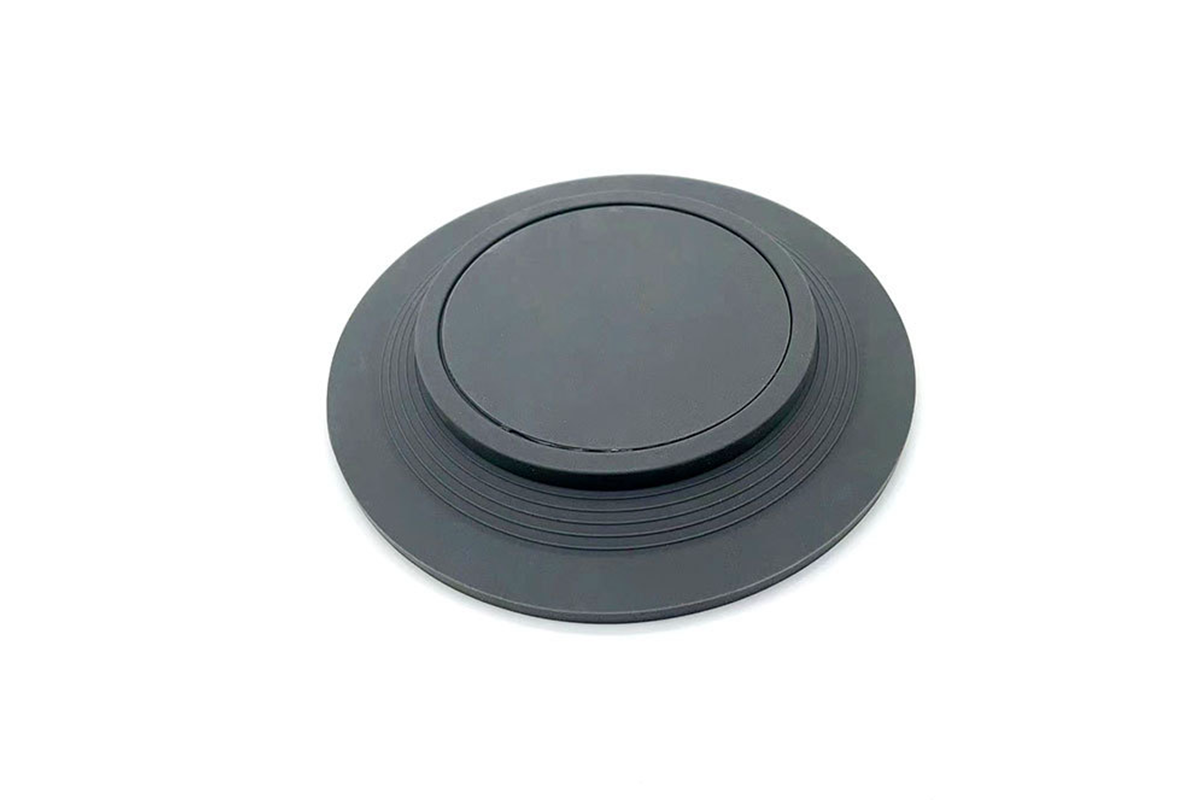

High-Temperature Fluorosilicone
Key Properties: It excels in high-temperature resistance, maintaining properties up to 260°C.
Applications: High-temperature fluorosilicone is indispensable in engine components and exhaust systems in the automotive industry, where extreme heat resistance is crucial.
Reasons for Use: Its popularity arises from its ability to withstand extreme temperatures, ensuring reliability in high-heat environments like engine compartments.

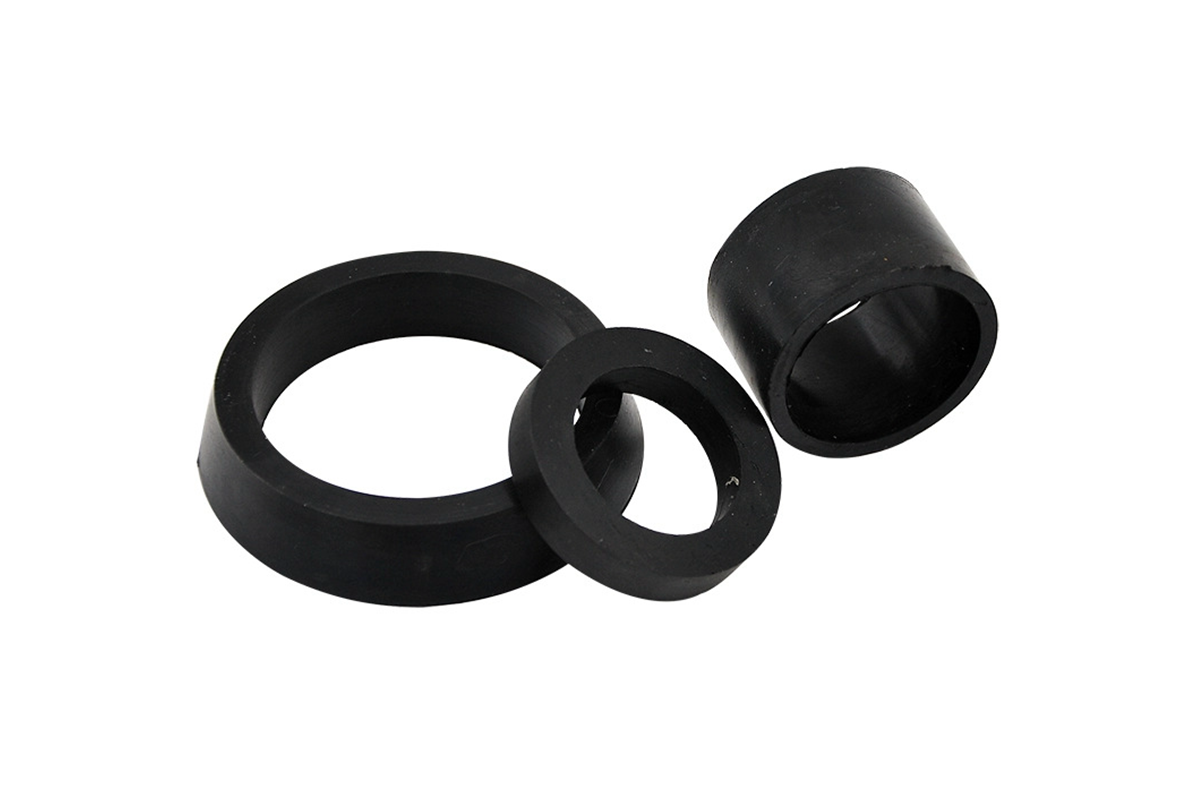

Fuel-Resistant Fluorosilicone
Key Properties: It is resistant to aviation fuels and oils, offering good tensile strength and flexibility.
Applications: Fuel-resistant fluorosilicone is vital in aerospace applications, particularly in seals and fuel systems, where contact with aviation fuels is common.
Reasons for Use: Its popularity stems from its ability to resist aviation fuels, ensuring safety and performance in critical aerospace components.
Oil-Resistant Fluorosilicone
Key Properties: It exhibits resistance to oils and hydrocarbon fuels, combined with moderate tensile strength and flexibility.
Applications: Oil-resistant fluorosilicone is used in automotive applications like gaskets, fuel seals, and O-rings, where exposure to oils is prevalent.
Reasons for Use: It is chosen for its ability to maintain performance when in contact with oils, making it a reliable choice in the automotive industry.

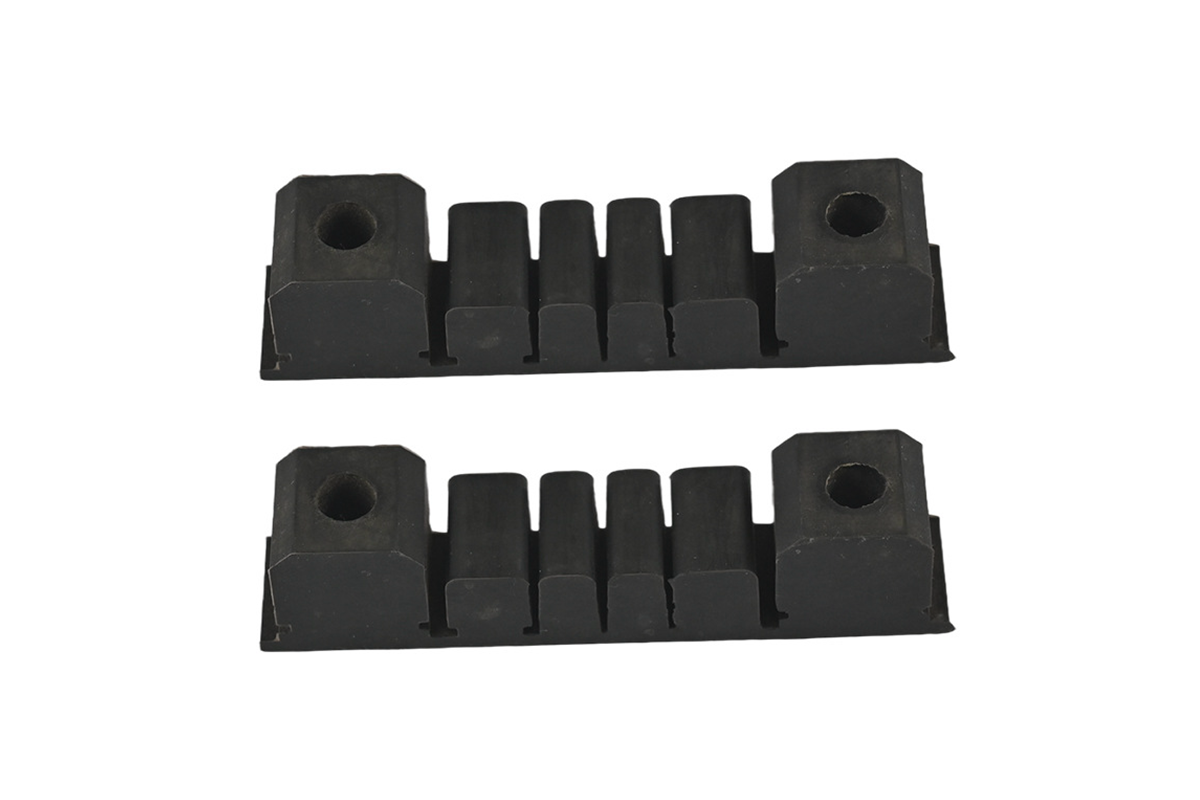

Aerospace-Grade Fluorosilicone
Key Properties: It meets stringent aerospace standards, offering excellent tensile strength, flexibility, and chemical resistance.
Applications: Aerospace-grade fluorosilicone is indispensable in critical aircraft components, including seals and gaskets.
Reasons for Use: Its popularity arises from its compliance with strict aerospace standards, ensuring reliability and safety in aerospace applications.
