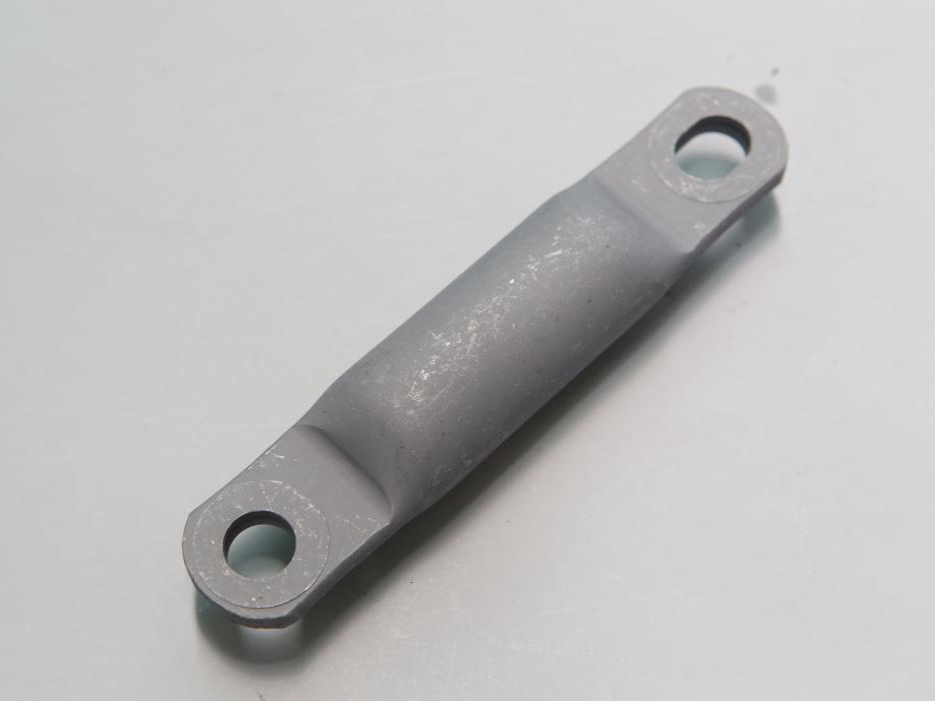

Phosphating: Preparing Custom Parts for Superior Finish Applications
Introduction
Phosphating is a chemical conversion coating process primarily used as a surface pretreatment method to prepare metal components for subsequent finishing processes. By forming a crystalline phosphate layer, typically zinc, manganese, or iron phosphate, this process significantly improves coating adhesion, enhances corrosion resistance, and provides an ideal base for paints and powder coatings.
Globally, phosphating is essential in industries requiring high-quality finishes and reliable corrosion protection, such as automotive, industrial equipment, electronics, and military sectors. The rising demand for durable, high-performance coatings continues to drive growth in phosphating applications, emphasizing its critical role in modern manufacturing.
Phosphating Process Overview
Key Steps in Pretreatment
Thorough cleaning and degreasing of parts
Acidic pickling or mechanical descaling to remove rust and scale
Surface activation to ensure uniform phosphate crystal formation
Comparison of Core Technologies (using tables)
Technology | Phosphate Type | Typical Coating Weight | Typical Applications | Efficiency |
|---|---|---|---|---|
Zinc Phosphating | Zinc-based coating | 1–7 g/m² uniform crystalline layer | Automotive parts, appliances, general industry | High |
Manganese Phosphating | Manganese-based coating | 5–25 g/m² thicker porous layer | Wear-resistant parts, gears, firearms components | Moderate-High |
Iron Phosphating | Iron-based coating | 0.2–1 g/m² thin amorphous layer | Light-duty applications, powder coating prep | Moderate |
Post-processing and Optimization
Water rinsing and neutralization to remove chemical residues
Application of rust inhibitors or sealants for added protection
Drying and thorough inspection for coating consistency and quality assurance
Phosphating: Advantages and Limitations
Brief Introduction: Phosphating significantly enhances paint adhesion and corrosion resistance, forming a reliable base for further finishes. Its effectiveness depends on proper pretreatment and post-treatment measures to ensure long-term durability.
Property | Advantage / Limitation | Remarks and Typical Values |
|---|---|---|
Coating Adhesion | Exceptional improvement | Paint adhesion strength increased by >80% (ASTM D3359) |
Corrosion Resistance | Improved when properly sealed | Salt Spray Resistance (ASTM B117): typically 300–800 hrs with sealing |
Surface Uniformity | Uniform and consistent | Crystalline layer uniformity ensures consistent coating adhesion |
Wear Resistance | Moderate enhancement (Manganese Phosphate) | Improved friction and wear resistance, ideal for moving parts |
Dimensional Impact | Minimal dimensional change | Typical coating thickness negligible for precision components |
Environmental Impact | Manageable with proper wastewater handling | Requires proper chemical handling and waste management systems |
Industrial Applications of Phosphating
Examples include:
Automotive Industry Automotive components such as chassis parts, body panels, and suspension systems rely heavily on phosphating for improved paint adhesion and superior corrosion protection (corrosion resistance increased up to 70%).
Industrial Equipment In industrial equipment manufacturing, phosphating provides excellent primer adhesion and corrosion resistance for heavy machinery, enhancing operational longevity (adhesion improved by >80%).
Firearms and Defense Manganese phosphating in firearm components enhances wear resistance and corrosion protection and reduces surface friction significantly, increasing reliability under demanding conditions (wear resistance improved by approximately 60%).
Appliance Manufacturing Household appliances use phosphating as a pretreatment to ensure superior coating adhesion, improved aesthetics, and corrosion resistance, prolonging product lifespan (adhesion quality improved by >70%).
Phosphating Process Selection Guide
Material Adaptability Matrix
Substrate Type | Manufacturing Process | Recommended Phosphating Process | Performance Gain Focus |
|---|---|---|---|
Zinc Phosphating | Superior paint adhesion, corrosion resistance | ||
Manganese Phosphating | Enhanced wear resistance, corrosion protection | ||
Zinc or Iron Phosphating | Improved surface uniformity, adhesion base | ||
Zinc Phosphating | Reliable coating adhesion, moderate corrosion resistance |
Key Criteria for Evaluating Phosphating Suppliers
Equipment Capability: Evaluate the supplier’s phosphating line for consistent coating weight control, bath chemical stability, and uniform temperature control.
Process Certification: Verify adherence to industry standards (ISO 9717, ASTM D769, and automotive specifications), ensuring optimal coating quality.
Test Reports: Request adhesion testing (ASTM D3359), corrosion resistance data (ASTM B117), and coating uniformity verification.
Surface Treatment Technology Classification Matrix
Technology | Main Function (Specific & Comprehensive) | Key Features | Advantages |
|---|---|---|---|
Surface preparation, corrosion resistance, improved adhesion | Thickness: 1–7 g/m² (Zinc), Salt Spray Resistance: >500 hrs achievable | Excellent adhesion, reliable corrosion protection | |
Decorative appeal, corrosion protection, durability | Decorative Chrome: 0.5–2 µm, Salt Spray: >1000 hrs achievable | Superior aesthetics, exceptional hardness | |
Surface smoothing, corrosion resistance | Surface roughness Ra <0.2 µm achievable | Superior smoothness, excellent corrosion resistance | |
Corrosion resistance, aesthetic matte finish | Thickness: 0.5–2 µm, moderate corrosion protection | Minimal dimensional change, aesthetic matte finish |
Technical Suitability Assessment (Phosphating-Specific)
Four-Dimensional Assessment Model:
Material Compatibility: Highly compatible with carbon steels, alloy steels, cast iron, and suitable for stainless steel with proper pretreatment.
Performance Requirements: Provides excellent adhesion enhancement (adhesion strength increased by >80%) and significant corrosion protection (Salt Spray Resistance ASTM B117: typically 300–800 hrs achievable).
Process Economics: Economically beneficial for mass production; moderate operational costs, high return through improved component durability and reduced maintenance.
Environmental and Safety Impact: Manageable environmental footprint with effective wastewater management systems and compliance with environmental regulations (EPA, OSHA).
FAQ (Frequently Asked Questions):
What is the main purpose of phosphating?
Can phosphating be applied to stainless steel?
How does phosphating affect paint adhesion?
What is the typical thickness of a phosphate coating?
Is phosphating environmentally safe?
